Display Nordica-Extraflame 5-knops

161,99

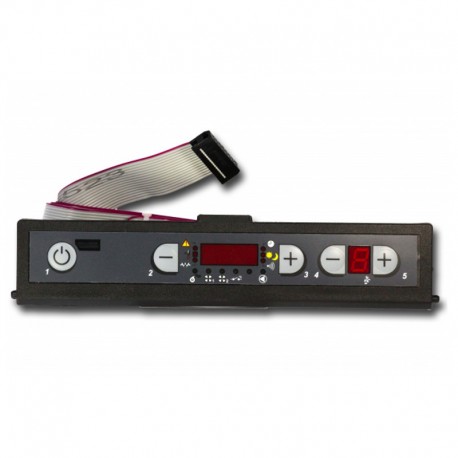

Micronova PF095 LED display keyboard
Container: horizontal recess
Keys: 5 buttons
Interface: 2 led displays
Connection: Flat cables with 16 contact

FLATCABLE IS INCLUDED

Productcode OP710052 Category

Op voorraad

Extra informatie

Gewicht 10 g
Afmetingen 10 × 10 × 10 cm
Magazijnplaats

OP710052
Micronova LED PF095_A02 display keyboard connects to control card by flat cable. By its 5 keys, it allows to set working parameters and to display features of the thermo-controller electronic card.
The console allows to:
– Switching ON/OFF
– Working power control
– Working temperature control
– Pellet charging adjustment
– Room temperature programming
– Outputs enabling
– Working check-up, etc.
It displays also parameters of working, programming set or changed by the user/technician and possible alarm codes.
For stoves
– DAL ZOTTO Ref. 002272544 – 2272544 mod.Edy – Edy Evo – Gabry – Gabry Elite – Gabry Elite Evo – Rita – Rita Elite – Rita EVO – Rita Elite EVO – Silvia – Stefy
– NORDICA EXTRAFLAME Ref. 002272544 – 2272544 mod. Bella – Bella Lux – Clementina – Contessa – Divina (2004-2012) – Divina Plus – Divina Steel – Dorina – Duchessa Steel – Elisir – Elisir Crystal – Emma – Emma Plus – Giusy – Giusy Evo – Giusy Plus – Giusy Plus Evo – Irina – Isabella – Ketty – Ketty Evo – Melinda Steel Air – Rosy – Serafina – Tosca Plus – Viviana – Viviana EVO – Viviana Plus – Viviana Plus EVO – Duchessa Idro – Duchessa Idro Steel – Iside Idro – Melinda Idro – Melinda Idro Steel
– OPERA mod. Puccini 2.0
