ROOKGASVENTILATOR Extraflam 002271033

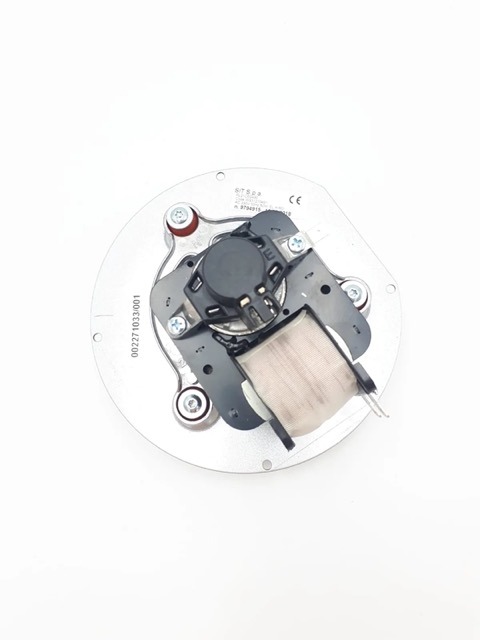

SIT PL21 CE0490 smoke extractor

SIT PL21 CE0490 fume extractor: The PL21, designed for use in biomass stoves with power up to 20KW, is a fume extractor equipped with a shielded pole motor, aluminized sheet scroll and AISI 430 steel impeller. H insulation, ZP thermal protection and 80mm diameter outlet, the fan is also available in the version with integrated curved or straight outlet.

Manufacturer: SIT

Model: PL21 CE0490

Power: 50W

Flange diameter: 160 mm

For models Dal Zotto: Insert 700 2.0, Azzurra, Diletta, Elda Steel, Elda Steel Elite, Graziella, Loretta, Melania, Melania Steel, Melania Elite Steel, Rita, Rita EVO, Rita Elite, Rita Elite EVO, Stefy,

For models Extraflame (002271033): Comfort P70, Comfort P70H49, Clementina, Dorina, Doroty, Graziosa Lux, Graziosa Lux Plus, Graziosa Steel, Graziosa Steel Plus, Irma, Irma Plus, Karolina Steel, Melinda Steel Air, Novella, Novella EVO, Novella Plus, Novella Plus Evo, Rosy, Sibilla, Sibilla Plus, Viviana, Viviana EVO, Viviana Plus, Viviana Plus EVO,

For Opera models: Insert Q7, Arena 2.0, Armida, Arpa 2.0, Bellini 2.0, Melodia 2.0, Puccini 2.0, Rossini 2.0, Rossini 2.0 Crystal,

It may also be compatible with stoves:

Mount on stoves

– AMG

– ARCE ref. 1611010229 mod. Smart – Smart jr – Mikrò – Micrò jr

– CADEL ref. 4D145140150 mod. Bistrot3 – Cloe – Cloe3 – Cristal 7 KW – Cristal 8,5 KW – Doge plus – Doge3 plus – Elise3 – Elise3 plus – Evo3 7KW – Evo3 8,5KW – Kriss – Kriss 7KW – Prince3 – Prince3 plus – Sfera – Sfera glass – Sfera plus – Shell3 – Sire plus – Sweet – Venus – Venus3 plus – Wall3 plus

– CADEL ref. 41451003200 mod. Cloe – Doge plus – Sfera – Sfera glass – Sfera plus – Sire plus – Venus

– CADEL ref. 414508024 mod. Cristal – Diana – Evo – Ibis 11 KW – Nice – Rondò – Tecna

– CALECOSOL ref. R2600537 mod. Zhana

– MONTEGRAPPA FIREPLACES ref. 1184018210 mod. LI8 Evo – LS6 Evo – LS9 Evo – NP7 Evo – NP10 Evo – NX10 Evo

– DEVILLE ref. D0026826

– ECOTECK ref. 20000-24-001

– ECOTECK ref. CRY-LD-060N-P

– EDILKAMIN ref. 748100 mod. Bering – Bora – Classica – Classica Plus – Idrochip – Idropoint – Idropolis – Kikka – Kikka plus – Micron – Mya – Naomy – Point – Point plus – Polis – Polis plus – Prima – Simpli – Zara – Zara plus

– EDILKAMIN ref. 613740 mod. Chip

– EDILKAMIN ref. 1021400 mod. Jane

– EMAFLAM ref. R2600516 mod. Alma – Alma rond – Citra – Diama – Hema – Sandro

– EUROALPI ref. R2600516 mod. Marmolada – Pasubio – Vezzana

– KALON ref. 120001 mod. Air and idrosmall

– NORDICA EXTRAFLAME Ref. 002271021 – 2271021 Mod. Divina Plus – Divina Steel – Ecological Hydro – Graziosa

– NORDICA EXTRAFLAME Ref. 002271033 – 2271033 Mod. Confort P70 – Dorina – Doroty – Melinda Steel – Viviana – Viviana Plus

– NORDICA EXTRAFLAME Ref. 002271059 – 2271059 Mod. Giusy

– NORDICA EXTRAFLAME Ref. 002271045 – 2271045

– MCZ ref. 41451406501

– MORETTI DESIGN ref. MFVF230V Mod. A7 GLOBE – A7 GLOBE GLASS – A7 STYLE – A8 COMPACT – A9 IRON – A9 STONE – PIRAMID – A10 COMPACT – A10 STYLE – A11 GLASS – A11 IRON – A11 STONE – ERGONOMIC – CLASSIC – A10 RETRO – A12 RETRO – A12 STYLE – A12 ALL STYLE – ELEGANCE – A12 CLASSIC STYLE – A12 ALL STYLE – A13 STYLE – A13 ALL STYLE – CLESS – RELAX – C7 GLOBE – C7 GLOBE GLASS – C8 COMPACT – C9 IRON – C9 STONE – PIRAMID – C10 COMPACT – C11 GLASS – C11 IRON – C11 STONE – ERGONOMIC – CLASSIC – C12 STYLE – C12 ALL STYLE – C12 CLASSIC STYLE – C12 ALL STYLE – C13 STYLE – C13 ALL STYLE – HOURGLASS – VENERE S – OLDY 9 – RELAX – RAMSES – PRETTY PLUS – VIRGO – MICRO – MINI – ALBA – PRETTY – ZEUS – SIXTY – OLDY – GIOIA – TRILLY – A6 IRON – A5 COMPACT – IRIDE – ATHENA – ARTEMIDE – VESTA – POSEIDON – COMPACT – GENUS MINI – AQUA 9 STYLE – AQUA 9 ALL STYLE – AQUA 11 GLASS – AQUA 11 IRON – AQUA 11 STONE – AQUA 12 RETRO – AQUA 13 STYLE – AQUA 13 ALL STYLE – HOURGLASS – AQUA 15 IRON – AQUA 15 STONE – AQUA 15 RETRO – AQUA 12 SLOT – A QUA 16 SLOT – AQUA 18 COMPACT – AQUA 18 TURBO COMPACT GLASS

– PALLADIUM mod. Scotland 10 Kw

– SQUARE ref. RF02010660 mod. P158T

– QLIMA ref. 19900020 mod. Delmara 75 S-line – Delmara 88 S-line – Delmara 125 S-line – Diandra 60 S-line – Diandra 90 S-line – Fiorina 103 S-line – Fiorina 74 S-line – Fiorina 90 S-line – Tectro TBH 558 – Tectro TBH 564 – Tectro TBH 565 – Tectro TBH 570 ref. 410694 mod. Delfina III 90 M-line – Ronda 100 S-line – Ronda 80 glass – Ronda 80 S-line

– RAVELLI ref. 20000-24-001 mod. Lisa 2005 – Lisa 2006

– RAVELLI ref. CRY-LD-060N-P mod. Young 60 – Young80 – Young 110

– SIDEROS mod. Gemini more
