Rookgasventilator EBM R2E150-AN91-13

273,16

Smoke extractor/extractor fan for pellet stoves.
Maximum available airflow rate: 185 m³/h
Rotations: up to 2400 RPM
Power: 32 Watt
Steel rotor: diameter 150 mm
With Hall Effect sensor.

Productcode OP706003 Categorieën , ,

Op voorraad

Extra informatie

Gewicht 1000 g
Afmetingen 20 × 20 × 10 cm
Magazijnplaats

OP706003

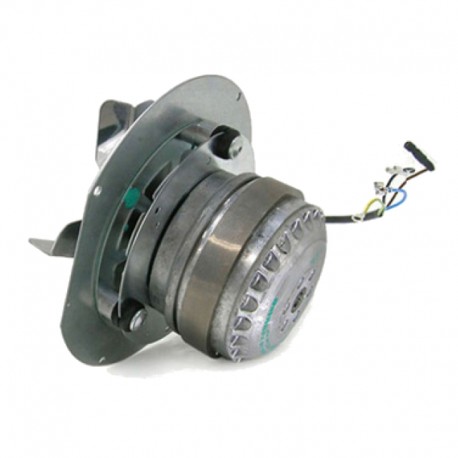

EBM R2E150-AN91-13 smoke extractor has been designed to be used for pellet stoves and biomass boilers.
Suitable on cochlea code 14811001
Optional gasket code 14808001
Provided with AISI 430 steel rotor.
Designed to a maximum airflow range of 185 m3/h.
Equipped of Hall Effect sensor (encoder).
In compliance with EN 60335-1; CE, rules. Insulation class: F; Protection class: I.
Can replace the extractor AACO ST73M 150.OR.20.32

For the following stoves
– ANSELMO COLA ref. 453552201 – 599001080 – 453554120 – 599000680

– ARCE ref. 1611905484 mod. Circle – Circle Canalizzata Plus – Circle Canalizzata – Circle Idro Large – Circle Idro Medium – Circle Idro Small – Circle j Plus – Circle j – Circle Plus –  Hetna – Hetna j Plus – Hetna j – Hetna Plus – Lexia – Lexia j Plus – Lexia j – Lexia Plus
– CADEL Ref. COM0236
– CADEL Ref. 4D14512028
– CAMINETTI MONTEGRAPPA ref. 1040001100 mod. AP6 – AP9 – AP11 – AS6 – AS6 Evo – AS9 – AS9 Evo – Atomo 6 Evo – Atomo 9 Evo – Atomo 11 Evo – Atomo 65 – Atomo 75 – Atomo 85 – Atomo 2.0 65 – Atomo 2.0 75 – Atomo 2.0 85 – AX9 – AX11 – Inside W7 – Inside W9 – Inside W12 – Inside W15 – Inside W20 – Inside X9 – Inside X12 – LP6 – LP9 – LW7 – LW9 – LW 12 – LW15 – LW20 – LX9 – LX12

– CAMINETTI MONTEGRAPPA ref. 1040100001 mod. PELLET Plus 1000 – PELLET Plus 5000 – PELLET Plus 6000 AC/AV – PELLET Plus 7000 AC/AV – PELLET Plus 8000 – PELLET Plus 8000 Power – PELLET Plus 10000 – PELLET Plus 10000 Power – PELLET Plus 11000 – PELLET Plus 11000 Power – PELLET Plus 14000 – PELLET Plus 15000 – PELLET Plus 15000 Power

– CLAM Cod. 05010004 Mod. Brooklyn – New York – Vienna – Parigi – Pulsar – Niagara – Retrò – Vintage – Vittoria 20 kW – Vittoria 26 kW

– CLAM Cod. 05010378 Mod. Elegance – Oslo – Style – Time

– CLAM Cod. 05020771 Mod. Pratico Small

– CLAM Cod. 05010352 Mod. Favilla F.P. 15 – Molina – Tivoli 8/20 kW – VittoriaEVO 20 kW
– DEVILLE ref. D0026082 mod. Lohic – Vestalis
– ECOTECK ref. 20000-25-001-RK

– ECOTECK ref. 55000-RK
– ECOTECK ref. 170-02-001A-RK

– EDILKAMIN ref. 625580 mod. Adria – Alpen – Ande – Brezza – Danubio – Esprit – Fantasy – Fata – Feeling 2009 – Fuji – Karma 2009 – Magic – Nilo – Pellet blok – Polaris plus – Prestige – Rio – Sally – Sally plus – Sirena – Soleil plus – Story – Tania plus – Ural

– EDILKAMIN ref. 292220 mod. Aida – Medea – Pellbox SCF – Polaris – Serena – Soleil – Tania

– EDILKAMIN ref. 215130 mod. Alba Marea 2003 – Alba Marea 2004 – Alba 2005 – Arianna – Artemide – Atena – Basic – Basic Plus – Bering Plus – Bijoux – Brio – Cameo – Cameo – Charme – Cherie – Daisy – Dallas – Dida – Dida Plus – Ecoidro – Elise – Feeling – Flexa – Fox 1 – Fox 2 – Fox 3 – Funny – Idrofast – Idroflexa C – Idroflexa estero – Idrofox – Idropellbox – Idrosally – Idrotech – Iris 2004 – Iris 2005 – Iris plus – Iris con programmatore orario – Iris up – Junior – Karma – Kelly – Lilia – Lilia plus – Little – Logo – Marea 2008 – Mariù – Meg – Mimì – Moon – Nancy – Nelly – Norma – Pellgreen 12 – Pellgreen 15 – Pellgreen 18 – Rose – Seven – Space – Strass – Ten – Ten plus – Tiny – Tiny ceramica intera – Trend – Trend 2005 – Trend plus – Tresor – Vintage

– EVA CALOR

– FALDI
– FERROLI ref. 599001070 – 453554205 mod. Antares

– FERROLI ref. 599001060 – 453554201 mod. Better crono HR

– FERROLI ref. 599001080 – 453552201 mod. Nettuno – Penelope – Termo Giove – Termo Vega – Termo Sirio

– KARMEK ONE ref. SML506-01 mod. Alice – Amelia – Barcellona – Berlino – Elena – Greta – Linda – Marylin – Roma – Samantha – Saturno

– KARMEK ONE ref. SML506-02 mod. Siviglia acciaio
– MORETTI DESIGN rif. MFRR2E150 Mod. MINERVA 2 – MINERVA 3 – GENIUS 24 – ORUS 2 – ORUS 3 – POSEIDON 2 – POSEIDON 3 – GEMINI – AQUA SLOT 20

– NORDICA EXTRAFLAME Ref. 002271001 – 2271001 Mod. Baby fiamma – Bella – Bella lux – Confort MINI – Confort P80 – Contessa – Delizia – Eco Fiamma – Preziosa

– NORDICA EXTRAFLAME Ref. 002271022 – 2271022

– NORDICA EXTRAFLAME Ref. 002271023 – 2271023 Mod. Clementina – Comfort idro – Comfort Plus – Confort MAXI – Divina – Duchessa – Duchessa Idro – Duchessa Steel – Ecologica – Ecologica Idro Steel – Elisir – Elisir Crystal – Elisir Idro – Emma – Emma Plus – Esmeralda – Falò – Giordana – Graziosa Lux – Graziosa Lux Plus – Graziosa Steel – Graziosa Steel Plus – Irina – Isabella – Iside Idro – Karolina – Karolina Steel – Melinda Idro – Melinda Idro Steel – Preziosa Steel – Rosy – Teodora – Tosca Plus

– NORDICA EXTRAFLAME Ref. 002271041 – 2271041 Mod. Souvenir Lux – Souvenir Steel
– PALAZZETTI Ref. 895700600 mod. Aurora – Clemy – Diamante – Fenice – Multifire 45 Aria V09 – Multifire 45 Aria V09 P.Tonda – Multifire 45 Idro – Margherita – Ecofire Mini Lux – Nicoletta Aria – Nicoletta Idro – Inserimento Canalizzato –  Ecofire Idro – Ecofire Mini Standard – Multifire 45 Aria – Polly – Minnie –  Tizzy – Lara – Molly – Molly idro – Sissy –  Sissy Idro – Gaja Canalizzata – Jenny Turbo – Emi – Freddy Idro – Ecofire DUE Classic – Ecofire Freddy Aria 2004 – Multifire 45 Idro NG – Hotty – Ecofire Maxi Idro – Zaira

– PIAZZETTA Ref. RF02010390 mod. MP 970

– RAVELLI ref. 20000-25-001-RK For all models with a 9 and 3 pin connector

– RAVELLI ref. 55000-RK mod. HR100 – HRV120 ver.2 – HRV135 ver.2 – HRB160 – HRV160 12 – HRevo 18 – HRV170 – Spillo – Aurora – HRV120 Style – Evavision – Snella ver.2 – HRevo 14 – HR160 – Snella – R70 – RC70 2014 – Monica – Flavia 2014 – Lisa plus 14 – Vera canvent – Snellina – HRV160 2014 – HRevo18 Touch- RCV1000 – HR70 – HRevo14 Touch – HRB120 – Holly Style – Soffio – Aria – RV80 2015 – RCV1000 2015 – Natural 7/9 – HRV160 Touch – Vittoria aircan – HR evo Slim – Natural 11 – Chiara
– RAVELLI ref. 170-02-001A-RK mod. HR100- HRV120 ver.1 – Riviera – HRV135 ver.1

– ROYAL
– SUPERIOR ref. RF02010510

– THERMOROSSI
