OP702008

206,67

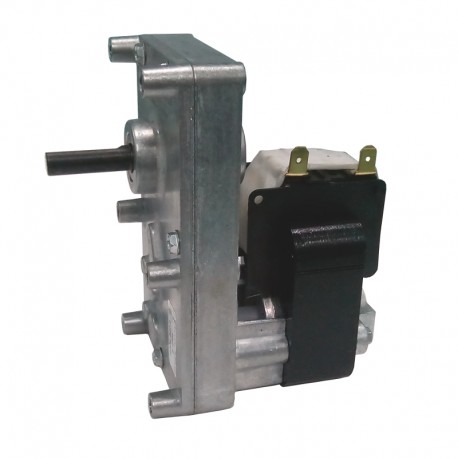

T3 series gear motor for pellet stoves, 220 V AC power supply
Speed: 4 rpm.
Magnetic core: 32 mm.
Shaft diameter: 9.5 mm.
Shaft Milling: double.
Rotation: clockwise.
Output torque: 28 Nm.

Productcode OP702008 Category

Op voorraad

Extra informatie

Gewicht 10 g
Afmetingen 10 × 10 × 10 cm
Dikte
Fabrikantnummer
Produkt Eigenschap
Oude beschrijving
Nummer leverancier
Magazijnplaats
Magazijnplaats

Designed for low speed and high torque applications. FB1255 geared motor is suited to be used as rotor in pellet stoves.
T3 series, 28Nm output torque, 36Watt consumption, 4rpm speed, clockwise rotation, 9.5mm shaft diameter, 32mm magnetic core, 220 V AC 50/60 Hz power supply.
