Rookgasventilator LN2 NATALINI PL21 CE0260 afgeschuinde flens OP706001

300,15

Smoke extractor/extractor fan for pellet stoves.
Generated pressure: up to 300 Pa.
Maximum available airflow rate: 160 m³/h
Rotations: up to 2500 RPM
Power: 50 Watt

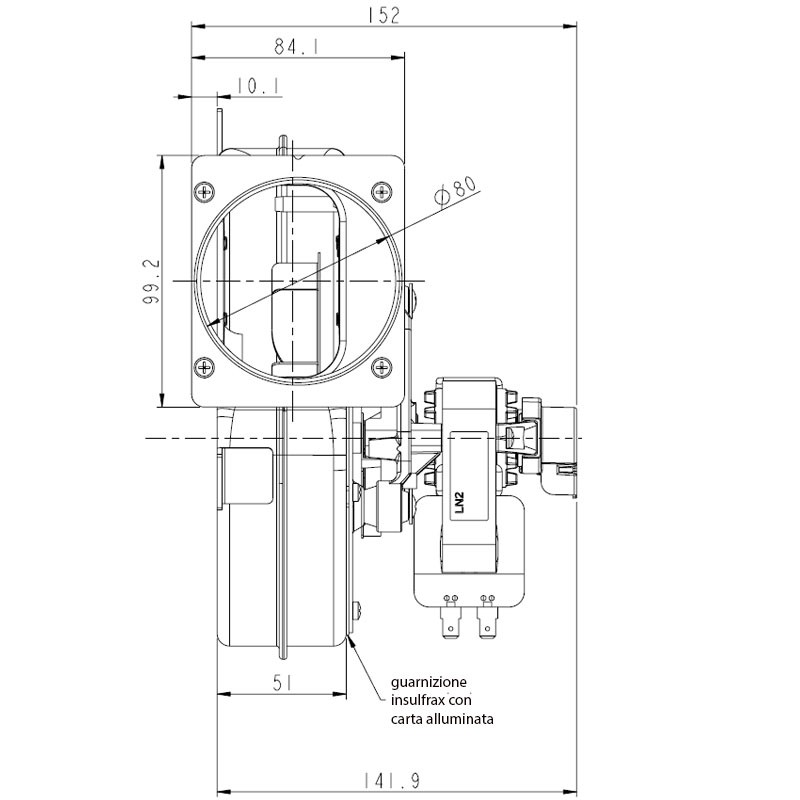

Flange connector: 80 mm

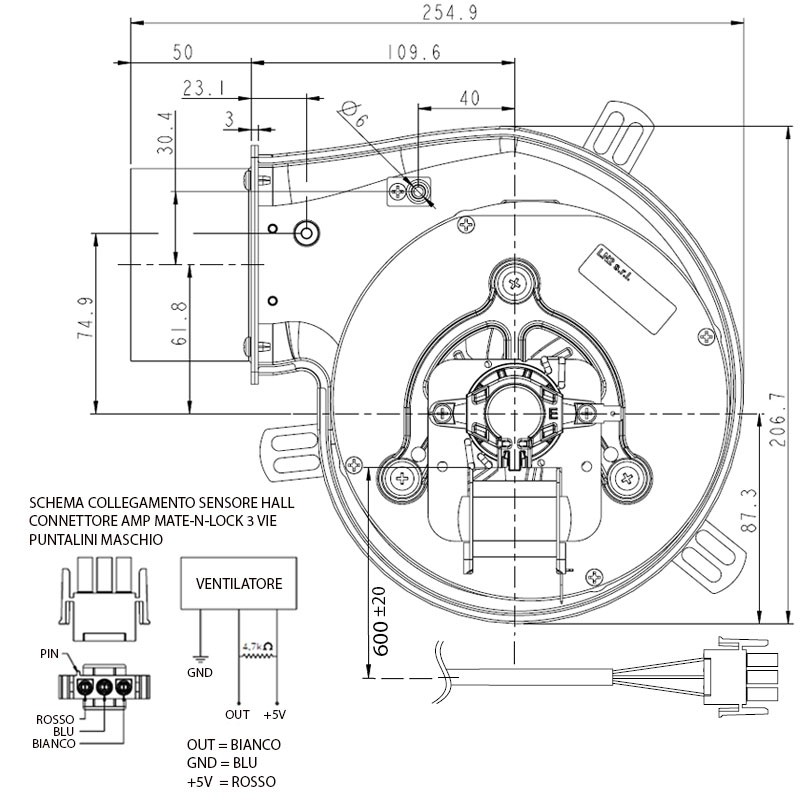

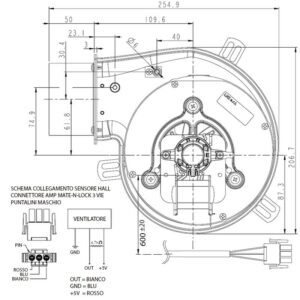

With Hall Effect sensor.

Productcode OP706001 Categorieën , , ,

Op voorraad

Extra informatie

Gewicht 10 g
Afmetingen 10 × 10 × 10 cm
Magazijnplaats

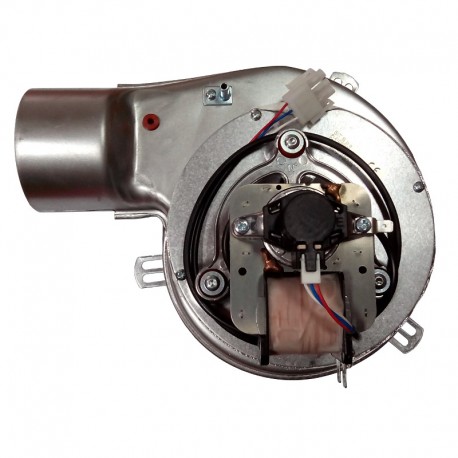

SITGROUP LN2 NATALINI PL21 CE0260 – W931210260 smoke extractor has been designed to be used for pellet stoves and biomass boilers, which range power is from 5 to 20 KW.
It can be set up in place of LN2 PL20 –  XIANG RRL152 – EBM RR152/0020A15-4225 – RR152/020A22-604 – RR152/3030LH – TRIAL CAF15Y-103PS

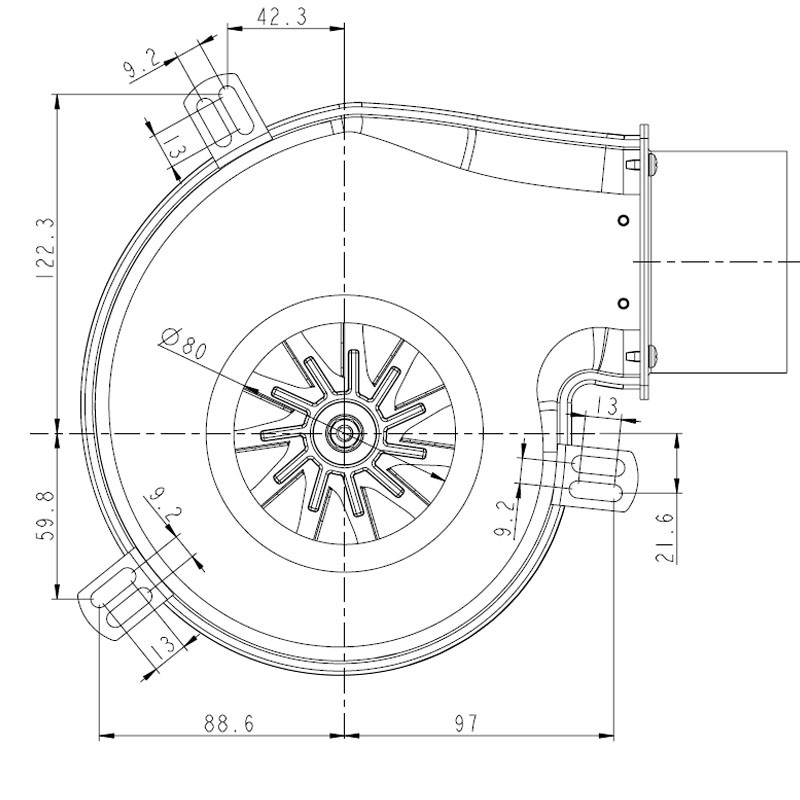

Provided with aluminised steel spiral, which output diameter is of 80 mm, and AISI 430 steel rotor.
Designed to generate up-to-300Pa-pressures with a maximum airflow range of 160 m3/h.
Equipped of input nozzle for the smoke output tube and Hall Effect sensor (encoder).
In compliance with EN60335-1, EN61591, EN60704-3, EN60704-2-13 rules. Insulation class: H; Protection class: I.
For the following stoves
– AMG

– ARCE ref. 1611010229 mod. Smart – Smart jr – Mikrò – Micrò jr
– CADEL Ref. 4D145140150
– CADEL Ref. 41451003200
– CADEL Ref. 414508024
– CADEL Ref. 41451003202  Mod. Cloe – Cloe 3 – Diana – Doge 3 Plus – Ibis 11KW – Nice – Prince 3 – Rondò – Sfera – Sfera Plus – Sire Plus – Square – Venus – Venus 3 Plus
– CALECOSOL ref. R2600537 mod. Zhana
– CAMINETTI MONTEGRAPPA ref. 1184018210 mod. LI8 Evo – LS6 Evo – LS9 Evo – NP7 Evo – NP10 Evo – NX10 Evo
– DEVILLE ref. D0026826 mod. Ambra Air – Isis – Onyx – Pegase – Sirius – Venus
– ECOTECK ref. 20000-24-001
– ECOTECK ref. CRY-LD-060N-P
– EDILKAMIN ref. 748100 mod. Bering – Bora – Classica – Classica Plus – Idrochip – Idropoint – Idropolis – Kikka – Kikka plus – Micron – Mya – Naomy – Point – Point plus – Polis – Polis plus – Prima – Simpli – Zara – Zara plus

– EDILKAMIN ref. 613740 mod. Chip

– EDILKAMIN ref. 1021400 mod. Jane
– EMAFLAM ref. R2600516 mod. Alma – Alma rond – Citra – Diama – Hema – Sandro
– EUROALPI ref. R2600516 mod. Marmolada – Pasubio – Vezzana
– NORDICA EXTRAFLAME Ref. 002271021 – 2271021 Mod. Divina Plus – Divina Steel – Ecologica Idro – Graziosa

– NORDICA EXTRAFLAME Ref. 002271033 – 2271033 Mod. Confort P70 – Dorina – Doroty – Melinda Steel – Viviana – Viviana Plus

– NORDICA EXTRAFLAME Ref. 002271059 – 2271059 Mod. Giusy

– NORDICA EXTRAFLAME Ref. 002271045 – 2271045

– MCZ ref. 41451406501

– MORETTI DESIGN rif. MFVF230V Mod. A7 GLOBE – A7 GLOBE GLASS – A7 STYLE – A8 COMPACT – A9 IRON – A9 STONE – PIRAMID – A10 COMPACT – A10 STYLE – A11 GLASS – A11 IRON – A11 STONE – ERGONOMIC – CLASSIC – A10 RETRO – A12 RETRO – A12 STYLE – A12 ALL STYLE – ELEGANCE – A12 CLASSIC STYLE – A12 ALL STYLE – A13 STYLE – A13 ALL STYLE – CLESS – RELAX – C7 GLOBE – C7 GLOBE GLASS – C8 COMPACT – C9 IRON – C9 STONE – PIRAMID – C10 COMPACT – C11 GLASS – C11 IRON – C11 STONE – ERGONOMIC – CLASSIC – C12 STYLE – C12 ALL STYLE – C12 CLASSIC STYLE – C12 ALL STYLE – C13 STYLE – C13 ALL STYLE – CLESSIDRA – VENERE S – OLDY 9 – RELAX – RAMSES – PRETTY PLUS – VIRGO – MICRO – MINI – ALBA – PRETTY – ZEUS – SIXTY – OLDY – GIOIA – TRILLY – A6 IRON – A5 COMPACT – IRIDE – ATHENA – ARTEMIDE – VESTA – POSEIDON – COMPACT – GENUS MINI – AQUA 9 STYLE – AQUA 9 ALL STYLE – AQUA 11 GLASS – AQUA 11 IRON – AQUA 11 STONE – AQUA 12 RETRO – AQUA 13 STYLE – AQUA 13 ALL STYLE – CLESSIDRA – AQUA 15 IRON – AQUA 15 STONE – AQUA 15 RETRO – AQUA 12 SLOT – AQUA 16 SLOT – AQUA 18 COMPACT – AQUA 18 TURBO COMPACT GLASS

– PALAZZETTI ref.  895713870 mod. Angelica – Caterina – Giada da rivestire – Isabella – Letizia – Margherita new – Penelope – Silvia – Slimmy – Tracy

– PALLADIO mod. Scozia 10 Kw

– PIAZZETTA ref. RF02010660 mod. P158T
– QLIMA rif. 19900020 mod. Delmara 75 S-line – Delmara 88 S-line – Delmara 125 S-line – Diandra 60 S-line – Diandra 90 S-line – Fiorina 103 S-line – Fiorina 74 S-line – Fiorina 90 S-line – Tectro TBH 558 – Tectro TBH 564 – Tectro TBH 565 – Tectro TBH 570 rif. 410694 mod. Delfina III 90 M-line – Ronda 100 S-line – Ronda 80 glass – Ronda 80 S-line
– RAVELLI ref. 20000-24-001 mod. Lisa 2005 – Lisa 2006
– RAVELLI ref. CRY-LD-060N-P mod. Young 60 – Young80 – Young 110

– SIDEROS mod. Gemini più
