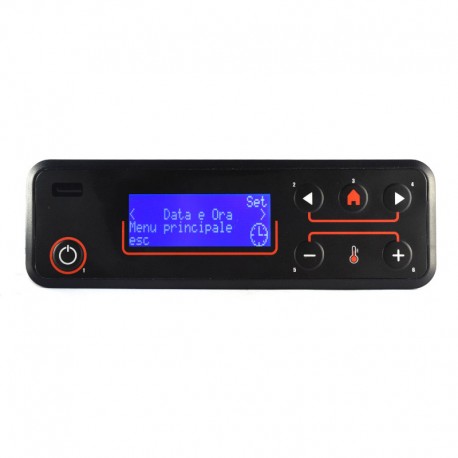

PM046 Micronova LCD display keyboard
Container: horizontal recess
Keys: 6 buttons
Interface: graphic LCD
Dimensions: 165x53x20 mm

Productcode OP710047 Category

Op voorraad

Extra informatie

Gewicht 10 g
Afmetingen 10 × 10 × 10 cm
Produkt Eigenschap
Oude beschrijving
Nummer leverancier

PM046 MICRONOVA LCD keyboard/display connects to control card by flat cable (code 14710013 – 14710044). By its six keys, it allows to set working parameters and to display features of the thermo-controller electronic card by the LCD.
By the display/keyboard, you can quickly set parameters of:
– Switching ON/OFF
– Working power control
– Working temperature control
– Pellet charging adjustment
– Room temperature programming
– Outputs enabling
– Working check-up, etc.
It displays also parameters of working, programming set or changed by the user/technician and possible alarm codes.
For stoves
– CADEL Ref. 41451303300
– CADEL Ref. 4D1451303300
– MCZ ref. 41451200600 – 41451701500

– RED 365 ref. 41451200600 – 41451701500
