€7,05

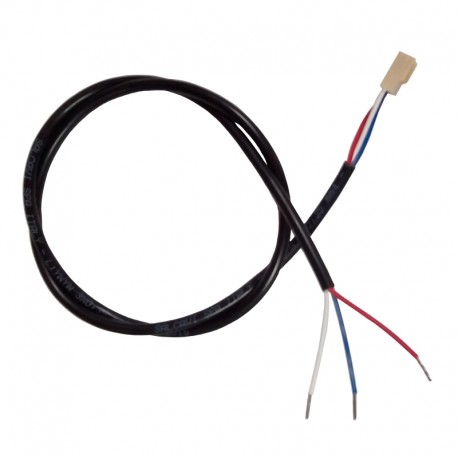

Connection cable for smoke extractor encoder
Cable length: 70 cm
Connector type: 3-contact Molex
Rubber-coated cable: 3×0.35 mmq
Op voorraad
| Gewicht | 10 g |
|---|---|
| Afmetingen | 10 × 10 × 10 cm |
| Magazijnplaats |
035XL710 cable for standard connection to Hall effect sensors (encoder) of pellet stove smoke extractors.
Equipped of 3-contact Molex connector and 0.35mmq cables with copper crimp pin connector to connect with terminals.
For the following codes: 14706001 – 14706015 – 14706016 – 14702060 – 14702061 – 14702071
For stoves
– ARCE ref. 1611910254 mod. Smart – Smart jr – Mikrò – Micrò jr
– CADEL mod. Cristal – Diana – Doge – Evo – Ibis – Kriss – Nice – Prince – Rondò – Sfera – Sire – Tecna – Venus
– ECOTECK ref. 55033
– QLIMA mod. Delmara 75 S-line – Delmara 88 S-line – Delmara 125 S-line – Diandra 60 S-line – Diandra 90 S-line – Fiorina 103 S-line – Fiorina 74 S-line – Fiorina 90 S-line – Tectro TBH 558 – Tectro TBH 564 – Tectro TBH 565 – Tectro TBH 570 – Delfina III 90 M-line – Ronda 100 S-line – Ronda 80 glass – Ronda 80 S-line
– RAVELLI ref. 55033 mod. Lisa 2005/2006 – RRL152 20000-24-001
